Penggantian Panel Listrik DB – STP di Senayan City Mall pada 2023
PT Sarana Energi Investama dipercaya kembali oleh Senayan City Mall, kawasan Senayan, Jakarta, untuk melakukan penggantian Panel Listrik DB – STP sebagai bagian dari kebutuhan sistem kelistrikan fasilitas.
Penggantian Panel Listrik DB – STP di Senayan City Mall
Divisi Panel Listrik PT Sarana Energi Investama kembali dipercaya oleh Senayan City Mall di kawasan Senayan, Jakarta, untuk menangani pekerjaan penggantian Panel Listrik DB – STP.
Project ini mencakup penyediaan panel beserta berbagai komponen pendukung sistem distribusi dan kontrol kelistrikan sesuai dengan kebutuhan fasilitas.

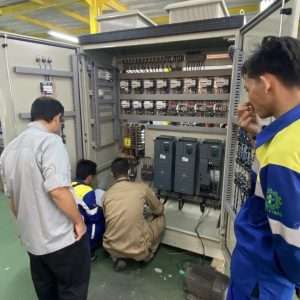

Supply Panel Listrik STP – Mall Senayan City
Pekerjaan ini menjadi bagian dari pengalaman PT Sarana Energi Investama dalam mendukung kebutuhan panel listrik pada bangunan komersial, khususnya untuk kebutuhan distribusi dan fasilitas pendukung gedung.
Spesifikasi Material Panel Listrik
Berikut merupakan spesifikasi material yang digunakan dalam pekerjaan penggantian Panel Listrik DB – STP di Senayan City Mall:
| No. | Uraian Material | Spesifikasi | Merk |
|---|---|---|---|
| 1 | Box Panel | Ukuran 1500 × 800 × 2000 mm, tebal plat 1.8 mm, 2 daun pintu | Lokal |
| 2 | MCCB | 3 Phase, 200A, 36kA | Schneider |
| 3 | MCCB | 3 Phase, 80A, 16kA | Schneider |
| 4 | MCCB | 3 Phase, 50A, 16kA | Schneider |
| 5 | MCB | 3 Phase, 16A, 6kA | Schneider |
| 6 | MCB | 1 Phase, 16A, 4.5kA | Schneider |
| 7 | MCB | 1 Phase, 10A, 4.5kA | Schneider |
| 8 | MCB | 1 Phase, 4A, 4.5kA | Schneider |
| 9 | Inverter | ATV610D37NA, 37 kW / 50 HP | Schneider |
| 10 | Lampu Panel TL LED Tube | 8 Watt | Philips |
| 11 | Exhaust Fan | FV25TGU2 | Panasonic |
| 12 | Relay | LY2-MY4 | Omron |
| 13 | Power Meter | PM2210 | Schneider |
| 14 | CT | 40 | GAE |
| 15 | Kabel | NYAF, NYY | Supreme |
Komponen Utama dalam Panel DB – STP
MCCB & MCB
Panel dilengkapi perangkat proteksi MCCB dan MCB dengan beberapa rating arus untuk mendukung pembagian serta perlindungan sirkuit listrik.
Inverter 37 kW
Menggunakan inverter Schneider ATV610D37NA dengan kapasitas 37 kW atau 50 HP sebagai salah satu komponen pada sistem panel.
Power Meter
Power meter Schneider PM2210 menjadi bagian dari panel untuk kebutuhan pengukuran parameter kelistrikan.
Relay & CT
Panel juga dilengkapi relay Omron serta CT sebagai bagian dari komponen pendukung sistem kelistrikan.
Lingkup Supply Panel Listrik
Detail Project Senayan City Mall – 2023
| Project | Penggantian Panel Listrik DB – STP |
|---|---|
| Client / Site | Senayan City Mall |
| Lokasi | Senayan, Jakarta |
| Tahun | 2023 |
| Scope | Supply / Penggantian Panel Listrik DB – STP |
| Divisi | Panel Listrik – PT Sarana Energi Investama |
Pengalaman SEI dalam Pengadaan Panel Listrik
Pengalaman dalam berbagai project bangunan komersial dan fasilitas industri menjadi salah satu dasar PT Sarana Energi Investama dalam mendukung kebutuhan sistem kelistrikan pelanggan.
Fokus layanan SEI mencakup pengadaan panel listrik baru, maintenance kelistrikan dan HVAC, retrofit, hingga audit energi. Dengan pengalaman tersebut, SEI siap menjadi partner untuk mendukung kebutuhan gedung dan fasilitas Anda.
Butuh Membuat atau Mengganti Panel Listrik?
Jangan ragu untuk menghubungi PT Sarana Energi Investama. Kami siap menjadi partner dalam pengadaan panel listrik, maintenance kelistrikan-HVAC, retrofit, dan audit energi untuk mendukung kebutuhan gedung maupun fasilitas Anda.
Contact – Panel-Listrik.idDB – STP Electrical Panel Replacement at Senayan City Mall in 2023
PT Sarana Energi Investama was once again trusted by Senayan City Mall in the Senayan area of Jakarta to carry out the replacement of the DB – STP Electrical Panel as part of the facility’s electrical system requirements.
DB – STP Electrical Panel Replacement at Senayan City Mall
The Electrical Panel Division of PT Sarana Energi Investama was once again trusted by Senayan City Mall in the Senayan area of Jakarta to carry out the replacement of the DB – STP Electrical Panel.
The project included the supply of the electrical panel and various supporting components for the facility’s electrical distribution and control requirements.
STP Electrical Panel Supply – Senayan City Mall
This project reflects PT Sarana Energi Investama’s experience in supporting electrical panel requirements for commercial buildings, particularly for electrical distribution and supporting facility systems.
Electrical Panel Material Specifications
The following materials and specifications were included in the DB – STP Electrical Panel replacement project at Senayan City Mall:
| No. | Material | Specification | Brand |
|---|---|---|---|
| 1 | Panel Box | 1500 × 800 × 2000 mm, 1.8 mm plate thickness, 2 doors | Local |
| 2 | MCCB | 3 Phase, 200A, 36kA | Schneider |
| 3 | MCCB | 3 Phase, 80A, 16kA | Schneider |
| 4 | MCCB | 3 Phase, 50A, 16kA | Schneider |
| 5 | MCB | 3 Phase, 16A, 6kA | Schneider |
| 6 | MCB | 1 Phase, 16A, 4.5kA | Schneider |
| 7 | MCB | 1 Phase, 10A, 4.5kA | Schneider |
| 8 | MCB | 1 Phase, 4A, 4.5kA | Schneider |
| 9 | Inverter | ATV610D37NA, 37 kW / 50 HP | Schneider |
| 10 | Panel TL LED Tube Light | 8 Watt | Philips |
| 11 | Exhaust Fan | FV25TGU2 | Panasonic |
| 12 | Relay | LY2-MY4 | Omron |
| 13 | Power Meter | PM2210 | Schneider |
| 14 | CT | 40 | GAE |
| 15 | Cable | NYAF, NYY | Supreme |
Key Components of the DB – STP Electrical Panel
MCCB & MCB
The panel is equipped with MCCB and MCB protection devices with various current ratings to support circuit distribution and protection.
37 kW Inverter
The panel uses a Schneider ATV610D37NA inverter rated at 37 kW or 50 HP as one of the system components.
Power Meter
The Schneider PM2210 power meter is included as part of the panel for electrical parameter measurement requirements.
Relay & CT
The panel is also equipped with an Omron relay and CT as supporting components of the electrical system.
Electrical Panel Supply Scope
Senayan City Mall Project Details – 2023
| Project | DB – STP Electrical Panel Replacement |
|---|---|
| Client / Site | Senayan City Mall |
| Location | Senayan, Jakarta |
| Year | 2023 |
| Scope | Supply / Replacement of DB – STP Electrical Panel |
| Division | Electrical Panel – PT Sarana Energi Investama |
SEI Experience in Electrical Panel Supply
Experience across various commercial buildings and industrial facilities is one of PT Sarana Energi Investama’s strengths in supporting customers’ electrical system requirements.
SEI’s services include new electrical panel procurement, electrical and HVAC maintenance, retrofit projects, and energy audits. With this experience, SEI is ready to become your partner in supporting building and facility requirements.
